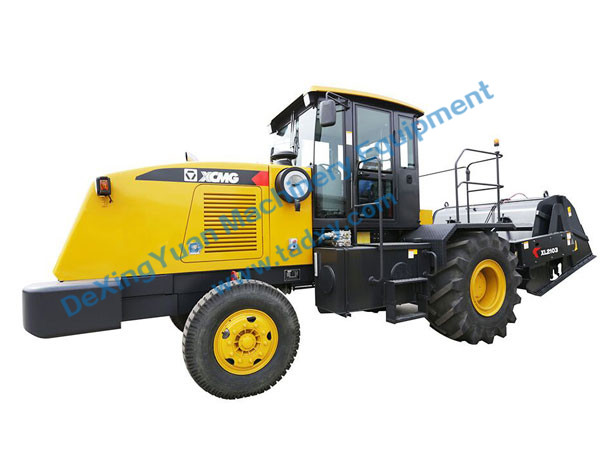

XL2105 Soil Stablizer
Item |
| XL2105 |
Working parameter | Milling width | 2100 |
Max. mixing depth | 0～400 | |
Number of tools | 168 | |
Rotor diameter | 1280 | |
Min. turning radius | 7100mm | |
Engine | Manufacturer | Weichai |
Type of cooling | water cooling+Charge Air Cooling System | |
Model | WP12.400N | |
Number of cylinder | 6 | |
Rated power(kw) | 294 | |
rotate speed（rpm） | 1900 | |
Max. fuel consumptio rate | 207.6 | |
emission standard | Euro Ⅲ | |
Electrical system | 24V | |
Speed | Working speed（km/h） | 0～3 |
Travel speed（km/h） | 0～23 | |
Gradeability | 20 | |
ground clearance | 450 | |
Tank capacity | Fuel tank（L） | 450 |
Hydraulic tank（L） | 450 | |
Weight | Operation weight(kg) | 15600 |
Load on front wheel(kg) | 3200 | |
Load on reart wheel(kg) | 12300 | |
Transportation size | Overall size(L*W*H) | 8740×2765×3450 |
